MJH11020 - Silicon NPN Power Transistor

The MJH11020 by Inchange Semiconductor is a Silicon NPN Power Transistor. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the MJH11020 Silicon NPN Power Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number MJH11020
Manufacturer Inchange Semiconductor
File Size 151.64 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet MJH11020-InchangeSemiconductor.pdf

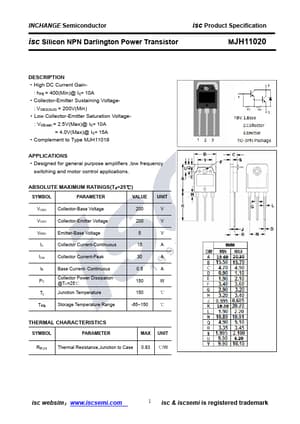

Additional preview pages of the MJH11020 datasheet.

MJH11020 Product details

Description

High DC Current Gain- : hFE = 400(Min)@ IC= 10A Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 200V(Min) Low Collector-Emitter Saturation Voltage- : VCE(sat) = 2.5V(Max)@ IC= 10A = 4.0V(Max)@ IC= 15A Complement to Type MJH11019 APPLICATIONS Designed for general purpose amplifiers ,low frequency switching and motor control applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VCBO Collector-Base Voltage 200 VCEO Collector-Emitter Voltage 20
