MJH11021 - 15 AMPERE DARLINGTON COMPLEMENTARY SILICON POWER TRANSISTORS

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MJH11021 Complementary Darlington Silicon Power Transistors ON
MJH11020 Complementary Darlington Silicon Power Transistors ON
MJH11020 Silicon NPN Power Transistor Inchange Semiconductor
MJH11022 Silicon NPN Power Transistor Inchange Semiconductor
MJH11022 Complementary Darlington Silicon Power Transistors ON

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description
MJH11020 15 AMPERE DARLINGTON COMPLEMENTARY SILICON POWER TRANSISTORS
MJH11022 15 AMPERE DARLINGTON COMPLEMENTARY SILICON POWER TRANSISTORS
MJH11017 15 AMPERE DARLINGTON COMPLEMENTARY SILICON POWER TRANSISTORS
MJH11018 15 AMPERE DARLINGTON COMPLEMENTARY SILICON POWER TRANSISTORS
MJH11019 15 AMPERE DARLINGTON COMPLEMENTARY SILICON POWER TRANSISTORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

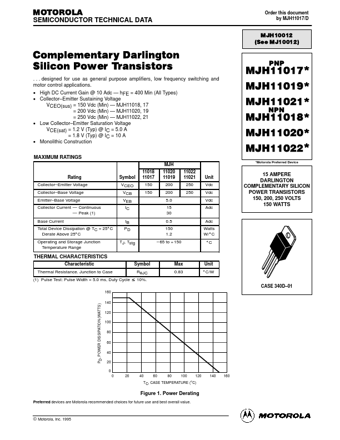

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MJH11017/D MJH10012 (See MJ10012) Complementary Darlington Silicon Power Transistors . . . designed for use as general purpose amplifiers, low frequency switching and motor control applications. • High DC Current Gain @ 10 Adc — hFE = 400 Min (All Types) • Collector–Emitter Sustaining Voltage VCEO(sus) = 150 Vdc (Min) — MJH11018, 17 VCEO(sus) = 200 Vdc (Min) — MJH11020, 19 VCEO(sus) = 250 Vdc (Min) — MJH11022, 21 • Low Collector–Emitter Saturation Voltage VCE(sat) = 1.2 V (Typ) @ IC = 5.0 A VCE(sat) = 1.
