IRFS250A - N-Channel MOSFET Transistor

Inchange Semiconductor

📥 Download Datasheet

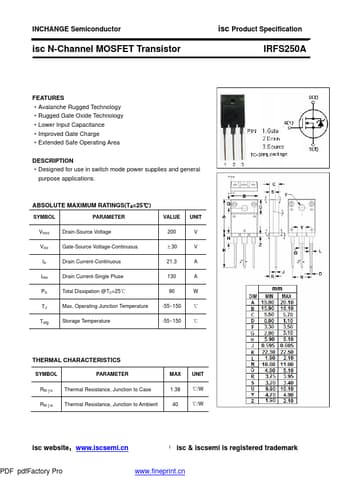

IRFS250A Datasheet Preview — Preview of IRFS250A PDF

Datasheet Details

Part number	IRFS250A
Manufacturer	Inchange Semiconductor
File Size	58.90 KB
Description	N-Channel MOSFET Transistor
Datasheet	IRFS250A-InchangeSemiconductor.pdf

IRFS250A Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 200 ±30 V V ID Drain Current-Continuous 21.3 A IDM Drain Current-Single Pluse 130 A PD Total Dissipation @TC=25℃ 90 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Rth j-a Thermal R

Features

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
