IRFS244A - N-Channel MOSFET Transistor

Inchange Semiconductor

📥 Download Datasheet

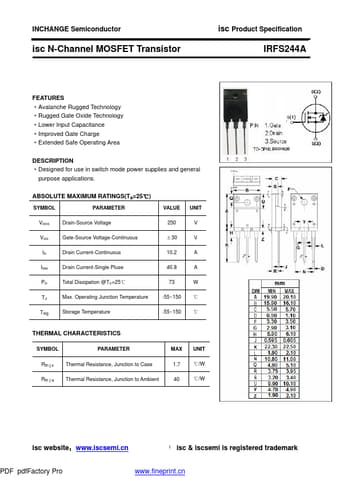

IRFS244A Datasheet Preview — Preview of IRFS244A PDF

Datasheet Details

Part number	IRFS244A
Manufacturer	Inchange Semiconductor
File Size	58.86 KB
Description	N-Channel MOSFET Transistor
Datasheet	IRFS244A-InchangeSemiconductor.pdf

IRFS244A Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 250 ±30 V V ID Drain Current-Continuous 10.2 A IDM Drain Current-Single Pluse 40.8 A PD Total Dissipation @TC=25℃ 73 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Rth j-a Thermal

Features

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
