IPD15N06S2L64 - N-Channel MOSFET Transistor

Inchange Semiconductor

📥 Download Datasheet

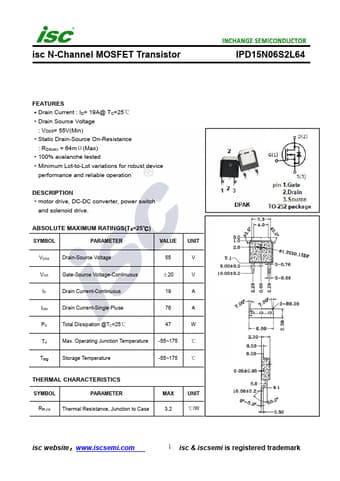

IPD15N06S2L64 Datasheet Preview — Preview of IPD15N06S2L64 PDF

Datasheet Details

Part number	IPD15N06S2L64
Manufacturer	Inchange Semiconductor
File Size	287.34 KB
Description	N-Channel MOSFET Transistor
Datasheet	IPD15N06S2L64-InchangeSemiconductor.pdf

IPD15N06S2L64 Product details

Description

motor drive, DC-DC converter, power switch and solenoid drive.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 55 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 19 A IDM Drain Current-Single Pluse 76 A PD Total Dissipation @TC=25℃ 47 W TJ Max.Operating Junction Temperature -55~175 ℃ Tstg Storage Temperature -55~175 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Junctio

Features

Drain Current : ID= 19A@ TC=25℃.
Drain Source Voltage : VDSS= 55V(Min).
Static Drain-Source On-Resistance : RDS(on) = 64mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
