IPD100N06S4-03 - Power-Transistor

Infineon

📥 Download Datasheet

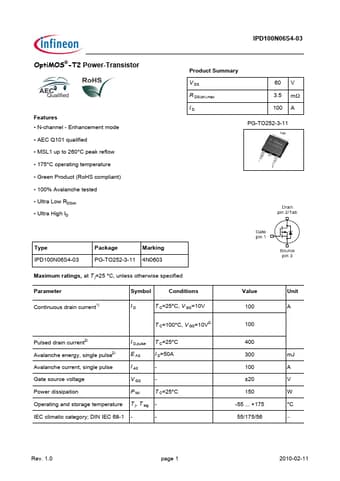

IPD100N06S4-03 Datasheet Preview — Preview of IPD100N06S4-03 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD100N06S4-03
Manufacturer	Infineon
File Size	160.02 KB
Description	Power-Transistor
Datasheet	IPD100N06S4-03-Infineon.pdf

IPD100N06S4-03 Product details

Features

N-channel - Enhancement mode.
AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested.
Ultra Low RDSon.
Ultra High ID IPD100N06S4-03 Product Summary V DS R DS(on),max ID 60 V 3.5 mΩ 100 A PG-TO252-3-11 Type IPD100N06S4-03 Package Marking PG-TO252-3-11 4N0603 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Cond.
