BD947 - Silicon NPN Power Transistor

Inchange Semiconductor

📥 Download Datasheet

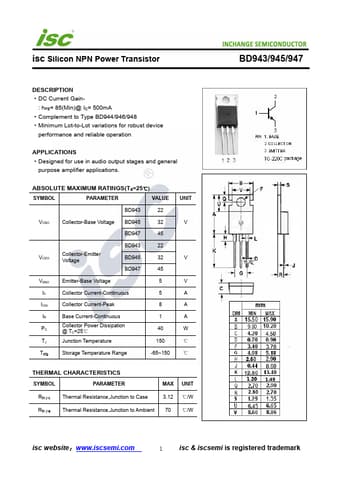

BD947 Datasheet Preview — Preview of BD947 PDF

Datasheet Details

Part number	BD947
Manufacturer	Inchange Semiconductor
File Size	212.58 KB
Description	Silicon NPN Power Transistor
Datasheet	BD947-InchangeSemiconductor.pdf

BD947 Product details

Description

DC Current Gain- : hFE= 85(Min)@ IC= 500mA Complement to Type BD944/946/948 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in audio output stages and general purpose amplifier applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE BD943 22 VCBO Collector-Base Voltage BD945 32 BD947 45 VCEO Collector-Emitter Voltage BD943 22 BD945 32 BD947 45 VEBO Emitter-Base Voltage 5 IC
