BD9400BFP - System Power Supply

Description

The BD9400BFP can be combined with the BD9401FM/BD9403FV to create application-specific system power supplies.

It can be controlled using an I2C BUS.

Features

  • 1) The IC can be combined with the BD9401FM/BD9403FV to provide design flexibility. 2) On/off control of up to 6 outputs with I2C BUS control 3) Broad input voltage range: 7 V to 36 V 4) Built-in LDO regulator for use with microcontrollers 5) LDO regulator: 3.3 V, 250 mA (±2% precision) 6) Built-in regulator voltage detection reset circuit 7) Built-in power supply overvoltage and undervoltage detection circuits 8) Dual reference voltage sources for BD9401FM/BD9403FV (VREF, VREG), and built-in tr.

📥 Download Datasheet

Datasheet Details

Part number BD9400BFP
Manufacturer ROHM
File Size 1.13 MB
Description System Power Supply
Datasheet download datasheet BD9400BFP Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BD940 Silicon PNP Power Transistor INCHANGE
BD940F Silicon PNP Power Transistor INCHANGE
BD941 Silicon Epitaxial Power Transistors NXP
BD941 SILICON POWER TRANSISTOR SavantIC
BD941 Silicon NPN Power Transistor Inchange Semiconductor

Other Datasheets by ROHM

Part Number Description
BD9401FM SMPS Controller
BD94062F high efficiency driver
BD9406KS2 28bit Audio DSP
BD9408FV White LED Driver
BD9409F White LED Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

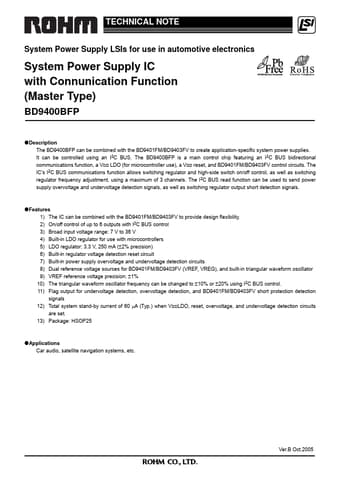

TECHNICAL NOTE System Power Supply LSIs for use in automotive electronics System Power Supply IC with Connunication Function (Master Type) BD9400BFP Description The BD9400BFP can be combined with the BD9401FM/BD9403FV to create application-specific system power supplies. It can be controlled using an I2C BUS. The BD9400BFP is a main control chip featuring an I2C BUS bidirectional communications function, a VDD LDO (for microcontroller use), a VDD reset, and BD9401FM/BD9403FV control circuits. The IC's I2C BUS communications function allows switching regulator and high-side switch on/off control, as well as switching regulator frequency adjustment, using a maximum of 3 channels.
