75N06 N-Channel MOSFET Transistor

75N06 Description

isc N-Channel MOSFET Transistor INCHANGE Semiconductor 75N06 *.
High current capability. Drain Source Voltage- : VDSS= 60V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations for robust devic.

75N06 Applications

* Regulator
* High current,high speed switching
* Solenoid and relay drivers ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 60 V VGS Gate-Source Voltage ±20 V ID Drain Current-continuous@ TC=25℃ 75 A ID(puls) Pulse Drain Curre

📥 Download Datasheet

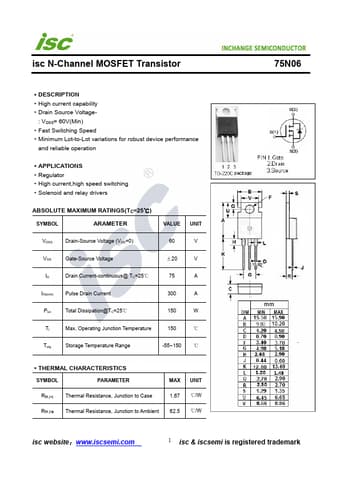

Preview of 75N06 PDF
datasheet Preview Page 2

Datasheet Details

Part number
75N06
Manufacturer
Inchange Semiconductor
File Size
229.44 KB
Datasheet
75N06-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
