75N05 - N-Channel MOSFET Transistor

Description

Drain Current ID= 75A@ TC=25℃ Drain Source Voltage- : VDSS= 50V(Min) Fast Switching Speed APPLICATIONS General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) VGS Gate-Source Voltage ID Drain Cur

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
75N05 SUB75N05 Vishay
75N05E N-Channel MOSFET INCHANGE
75N08 N-CHANNEL MOSFET CHONGQING PINGYANG
75N08 FDP75N08 Fairchild Semiconductor
75N08B N-CHANNEL MOSFET CHONGQING PINGYANG

Other Datasheets by Inchange Semiconductor

Part Number Description
75N06 N-Channel MOSFET Transistor
75N08 N-Channel MOSFET Transistor
75N10 N-Channel MOSFET Transistor
75N75 TO-263 N-Channel MOSFET Transistor

Full PDF Text Transcription

Click to expand full text

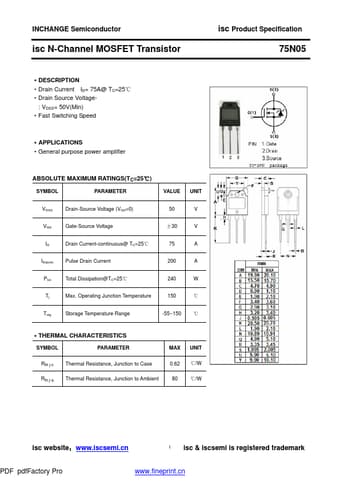

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification 75N05 ·DESCRIPTION ·Drain Current ID= 75A@ TC=25℃ ·Drain Source Voltage- : VDSS= 50V(Min) ·Fast Switching Speed ·APPLICATIONS ·General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) VGS Gate-Source Voltage ID Drain Current-continuous@ TC=25℃ 50 ±30 75 V V A ID(puls) Pulse Drain Current 200 A Ptot Total Dissipation@TC=25℃ 240 W Tj Max. Operating Junction Temperature 150 ℃ Tstg Storage Temperature Range -55~150 ℃ ·THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth j-c Rth j-a Thermal Resistance, Junction to Case Thermal Resistance, Junction to Ambient 0.62 ℃/W 80 ℃/W isc website：www.iscsemi.
