2SK4086LS - N-Channel MOSFET Transistor

The 2SK4086LS by Inchange Semiconductor is a N-Channel MOSFET Transistor. Below is the official datasheet preview.

📥 Download Datasheet

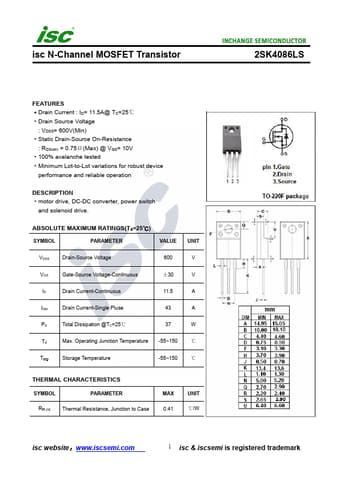

Official preview page of the 2SK4086LS N-Channel MOSFET Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SK4086LS
Manufacturer Inchange Semiconductor
File Size 280.31 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK4086LS-InchangeSemiconductor.pdf
Additional preview pages of the 2SK4086LS datasheet.

2SK4086LS Product details

Description

motor drive, DC-DC converter, power switch and solenoid drive.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 11.5 A IDM Drain Current-Single Pluse 43 A PD Total Dissipation @TC=25℃ 37 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Junc

Features
