2SK4081I - N-Channel MOSFET Transistor

Inchange Semiconductor

📥 Download Datasheet

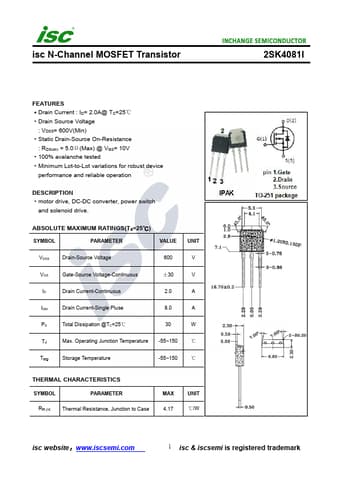

2SK4081I Datasheet Preview — Preview of 2SK4081I PDF

Datasheet Details

Part number	2SK4081I
Manufacturer	Inchange Semiconductor
File Size	355.19 KB
Description	N-Channel MOSFET Transistor
Datasheet	2SK4081I-InchangeSemiconductor.pdf

2SK4081I Product details

Description

motor drive, DC-DC converter, power switch and solenoid drive.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 600 V VGS Gate-Source Voltage-Continuous ±30 V ID Drain Current-Continuous 2.0 A IDM Drain Current-Single Pluse 8.0 A PD Total Dissipation @TC=25℃ 30 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Junc

Features

Drain Current : ID= 2.0A@ TC=25℃.
Drain Source Voltage : VDSS= 600V(Min).
Static Drain-Source On-Resistance : RDS(on) = 5.0Ω(Max) @ VGS= 10V.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
