2SK3570-ZK - N-Channel MOSFET Transistor

📥 Download Datasheet

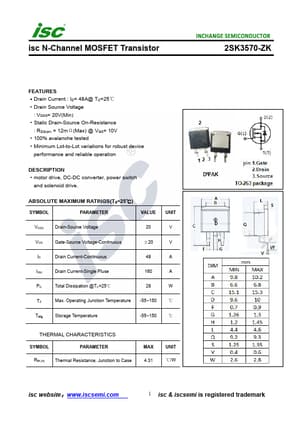

Preview of 2SK3570-ZK PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SK3570-ZK
Manufacturer Inchange Semiconductor
File Size 358.39 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK3570-ZK-InchangeSemiconductor.pdf

2SK3570-ZK Product details

Description

motor drive, DC-DC converter, power switch and solenoid drive.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 20 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 48 A IDM Drain Current-Single Pluse 160 A PD Total Dissipation @TC=25℃ 29 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Juncti

Features
