2SD1190 - Silicon NPN Darlington Power Transistor

The 2SD1190 by Inchange Semiconductor is a Silicon NPN Darlington Power Transistor. Below is the official datasheet preview.

📥 Download Datasheet

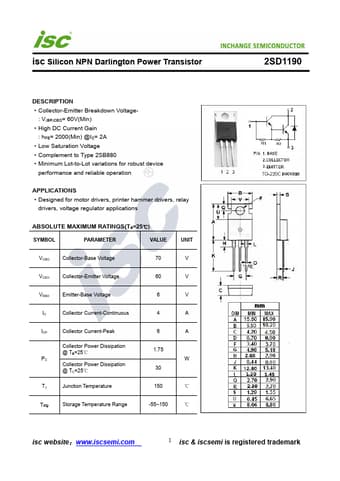

Official preview page of the 2SD1190 Silicon NPN Darlington Power Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SD1190
Manufacturer Inchange Semiconductor
File Size 191.15 KB
Description Silicon NPN Darlington Power Transistor
Datasheet download datasheet 2SD1190_InchangeSemiconductor.pdf
Additional preview pages of the 2SD1190 datasheet.

2SD1190 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 60V(Min) High DC Current Gain : hFE= 2000(Min) @IC= 2A Low Saturation Voltage Complement to Type 2SB880 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for motor drivers, printer hammer drivers, relay drivers, voltage regulator applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 70 V VCEO Collector-Em
