2SC4460 - Silicon NPN Power Transistors

Inchange Semiconductor

📥 Download Datasheet

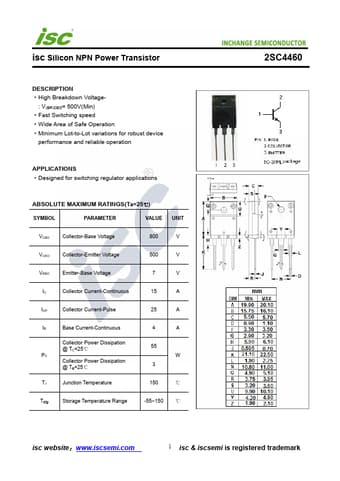

2SC4460 Datasheet Preview — Preview of 2SC4460 PDF

Datasheet Details

Part number	2SC4460
Manufacturer	Inchange Semiconductor
File Size	225.09 KB
Description	Silicon NPN Power Transistors
Datasheet	2SC4460_InchangeSemiconductor.pdf

2SC4460 Product details

Description

High Breakdown Voltage- : V(BR)CEO= 500V(Min) Fast Switching speed Wide Area of Safe Operation Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for switching regulator applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 800 V VCEO Collector-Emitter Voltage 500 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 15 A ICP Collector Cu
