2SC4461 - Silicon NPN Power Transistor

📥 Download Datasheet

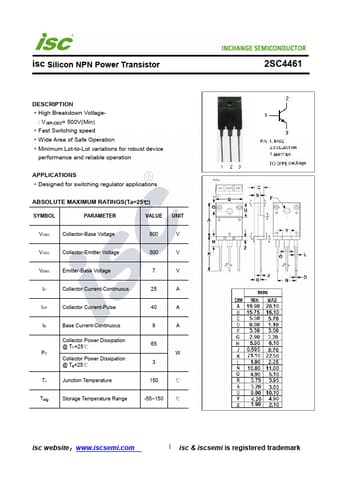

Preview of 2SC4461 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SC4461
Manufacturer Inchange Semiconductor
File Size 225.79 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet 2SC4461-InchangeSemiconductor.pdf

2SC4461 Product details

Description

High Breakdown Voltage- : V(BR)CEO= 500V(Min) Fast Switching speed Wide Area of Safe Operation Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for switching regulator applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 800 V VCEO Collector-Emitter Voltage 500 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 25 A ICP Collector Cu
