2SB1216 - Silicon PNP Power Transistor

The 2SB1216 by Inchange Semiconductor is a Silicon PNP Power Transistor. Below is the official datasheet preview.

📥 Download Datasheet

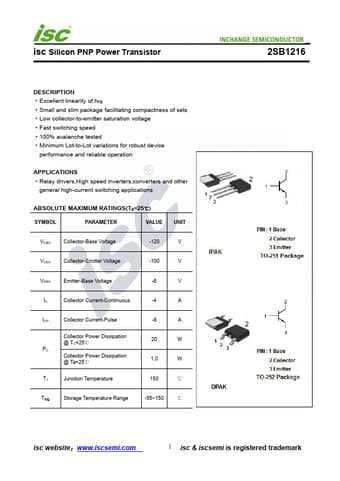

Official preview page of the 2SB1216 Silicon PNP Power Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SB1216
Manufacturer Inchange Semiconductor
File Size 254.08 KB
Description Silicon PNP Power Transistor
Datasheet download datasheet 2SB1216-InchangeSemiconductor.pdf
Additional preview pages of the 2SB1216 datasheet.

2SB1216 Product details

Description

Excellent linearity of hFE Small and slim package facilitating compactness of sets Low collector-to-emitter saturation voltage Fast switching speed 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Relay drivers,High speed inverters,converters and other general high-current switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -
