2SB1203 - Silicon PNP Power Transistor

📥 Download Datasheet

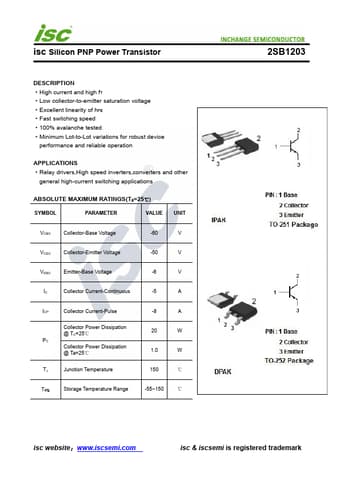

Preview of 2SB1203 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SB1203
Manufacturer Inchange Semiconductor
File Size 253.16 KB
Description Silicon PNP Power Transistor
Datasheet download datasheet 2SB1203-InchangeSemiconductor.pdf

2SB1203 Product details

Description

High current and high fT Low collector-to-emitter saturation voltage Excellent linearity of hFE Fast switching speed 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Relay drivers,High speed inverters,converters and other general high-current switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter
