2SA837 - POWER TRANSISTOR

The 2SA837 by Inchange Semiconductor is a POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

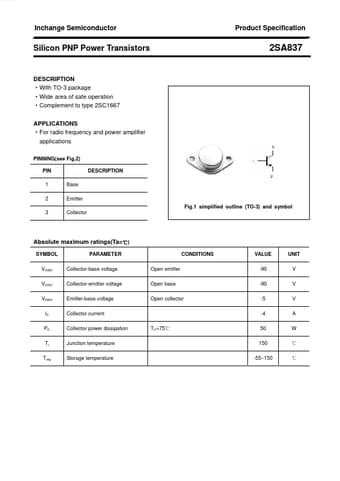

Official preview page of the 2SA837 POWER TRANSISTOR datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SA837
Manufacturer Inchange Semiconductor
File Size 153.42 KB
Description POWER TRANSISTOR
Datasheet download datasheet 2SA837_InchangeSemiconductor.pdf
Additional preview pages of the 2SA837 datasheet.

2SA837 Product details

Description

With TO-3 package Wide area of safe operation Complement to type 2SC1667 APPLICATIONS For radio frequency and power amplifier applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Fig.1 simplified outline (TO-3) and symbol Collector DESCRIPTION Absolute maximum ratings(Ta=℃) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature
