2SA1788 - Power Transistor

The 2SA1788 by Inchange Semiconductor is a Power Transistor. Below is the official datasheet preview.

📥 Download Datasheet

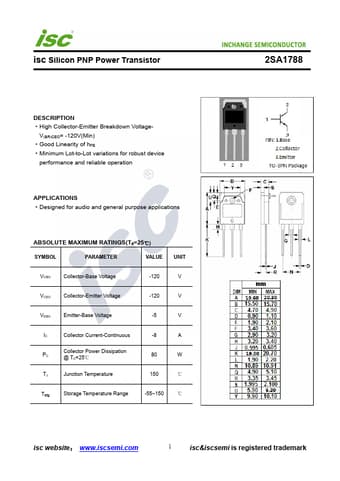

Official preview page of the 2SA1788 Power Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SA1788
Manufacturer Inchange Semiconductor
File Size 198.16 KB
Description Power Transistor
Datasheet download datasheet 2SA1788_InchangeSemiconductor.pdf
Additional preview pages of the 2SA1788 datasheet.

2SA1788 Product details

Description

High Collector-Emitter Breakdown Voltage- V(BR)CEO= -120V(Min) Good Linearity of hFE Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for audio and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -120 V VCEO Collector-Emitter Voltage -120 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous PC Collector Power Dissipati
