2SA1718 - POWER TRANSISTOR

Description

Low Collector Saturation Voltage :VCE(sat)= -0.5(V)(Max)@IC= -2A High Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS

Designed for audio and general purpose applications.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SA1718 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA1710 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SA1714 - PNP SILICON EPITAXIAL POWER TRANSISTOR (NEC)
  • 2SA1715 - (2SAxxxx) TRANSISTOR (Micro Electronics)
  • 2SA1700 - PNP Transistor (INCHANGE)
  • 2SA1700 - PNP Epitaxial Silicon Transistor (Sanyo Semicon Device)
  • 2SA1700 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SA1700 - PNP Transistor (LGE)
  • 2SA1700 - PNP Epitaxial Planar Silicon Transistor (GME)
  • 2SA1700 - PNP EPITAXIAL SILICON TRANSISTOR (UTC)
Other Datasheets by Inchange Semiconductor

Full PDF Text Transcription

Click to expand full text

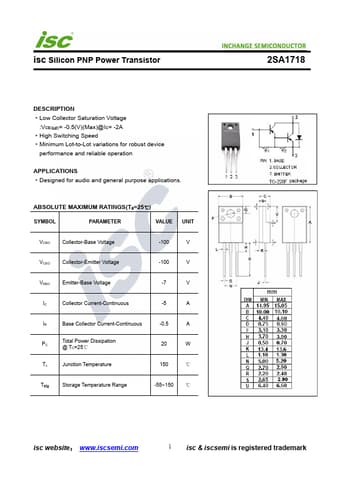

isc Silicon PNP Power Transistor DESCRIPTION ·Low Collector Saturation Voltage :VCE(sat)= -0.5(V)(Max)@IC= -2A ·High Switching Speed ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for audio and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -100 V VCEO Collector-Emitter Voltage -100 V VEBO Emitter-Base Voltage -7 V IC Collector Current-Continuous -5 A IB Base Collector Current-Continuous -0.5 A PC Total Power Dissipation @ TC=25℃ 20 W TJ Junction Temperature 150 ℃ Tstg Storage Temperature Range -55~150 ℃ 2SA1718 isc website： www.iscsemi.
