2SA1695 - POWER TRANSISTOR

The 2SA1695 by Inchange Semiconductor is a POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

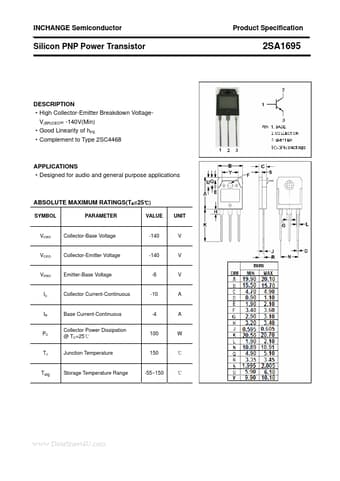

Official preview page of the 2SA1695 POWER TRANSISTOR datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SA1695
Manufacturer Inchange Semiconductor
File Size 108.55 KB
Description POWER TRANSISTOR
Datasheet download datasheet 2SA1695_InchangeSemiconductor.pdf
Additional preview pages of the 2SA1695 datasheet.

2SA1695 Product details

Description

High Collector-Emitter Breakdown VoltageV(BR)CEO= -140V(Min) Good Linearity of hFE Complement to Type 2SC4468 APPLICATIONS Designed for audio and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -140 V VCEO Collector-Emitter Voltage -140 V VEBO Emitter-Base Voltage -6 V IC Collector Current-Continuous -10 A IB B Base Current-Continuous Collector Power Dissipation @ TC=25℃ Junction Tempera
