2SA1291 - POWER TRANSISTOR

The 2SA1291 by Inchange Semiconductor is a POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

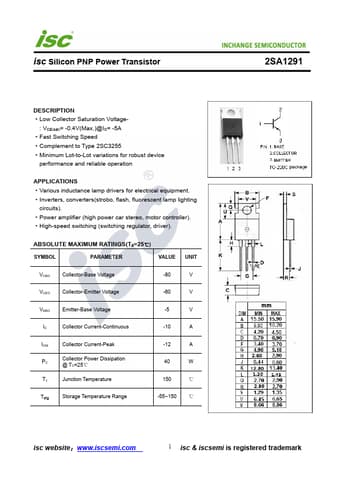

Official preview page of the 2SA1291 POWER TRANSISTOR datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SA1291
Manufacturer Inchange Semiconductor
File Size 218.88 KB
Description POWER TRANSISTOR
Datasheet download datasheet 2SA1291_InchangeSemiconductor.pdf
Additional preview pages of the 2SA1291 datasheet.

2SA1291 Product details

Description

Low Collector Saturation Voltage- : VCE(sat)= -0.4V(Max.)@IC= -5A Fast Switching Speed Complement to Type 2SC3255 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Various inductance lamp drivers for electrical equipment. Inverters, converters(strobo, flash, fluorescent lamp lighting circuits). Power amplifier (high power car stereo, motor controller). High-speed switching (switching regulator, driver).
