| Part number | 2N6099, 2N6101 |
|---|---|
| Manufacturer | Inchange Semiconductor |
| File Size | 60.74 KB |
| Description | Silicon NPN Power Transistors |
| Datasheet |
 2N6101_InchangeSemiconductor.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: 2N6099, 2N6101. Please refer to the document for exact specifications by model. |

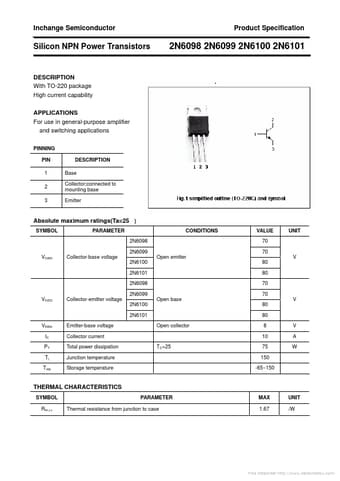

¡¤With TO-220 package ¡¤High current capability APPLICATIONS ¡¤For use in general-purpose amplifier and switching applications PINNING PIN 1 2 3 DESCRIPTION Base Collector;connected to mounting base Emitter Absolute maximum ratings(Ta=25¡æ ) SYMBOL PARAMETER 2N6098 2N6099 VCBO Collector-base voltage 2N6100 2N6101 2N6098 2N6099 VCEO Collector-emitter voltage 2N6100 2N6101 VEBO IC PT Tj Tstg Emitter-base voltage Collector current Total power dissipation Junction temperature Storage temperature TC
