2N3773L - Silicon NPN Power Transistors

The 2N3773L by Inchange Semiconductor is a Silicon NPN Power Transistors. Below is the official datasheet preview.

📥 Download Datasheet

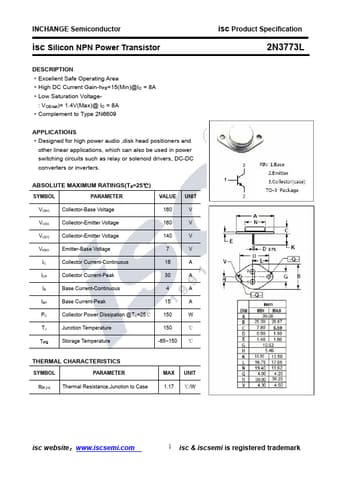

Official preview page of the 2N3773L Silicon NPN Power Transistors datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2N3773L
Manufacturer Inchange Semiconductor
File Size 137.17 KB
Description Silicon NPN Power Transistors
Datasheet download datasheet 2N3773L-InchangeSemiconductor.pdf
Additional preview pages of the 2N3773L datasheet.

2N3773L Product details

Description

Excellent Safe Operating Area High DC Current Gain-hFE=15(Min)@IC = 8A Low Saturation Voltage- : VCE(sat)= 1.4V(Max)@ IC = 8A Complement to Type 2N6609 APPLICATIONS Designed for high power audio ,disk head positioners and other linear applications, which can also be used in power switching circuits such as relay or solenoid drivers, DC-DC converters or inverters.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 160 V VCEX
