VUO122-16NO7 Standard Rectifier Module

IXYS

Description

Standard Rectifier Module 3~ Rectifier Bridge Part number VUO122-16NO7 VUO122-16NO7 3~ Rectifier VRRM = I DAV = I FSM = 1600 V 125 A 1000 A PS18 .

📥 Download Datasheet

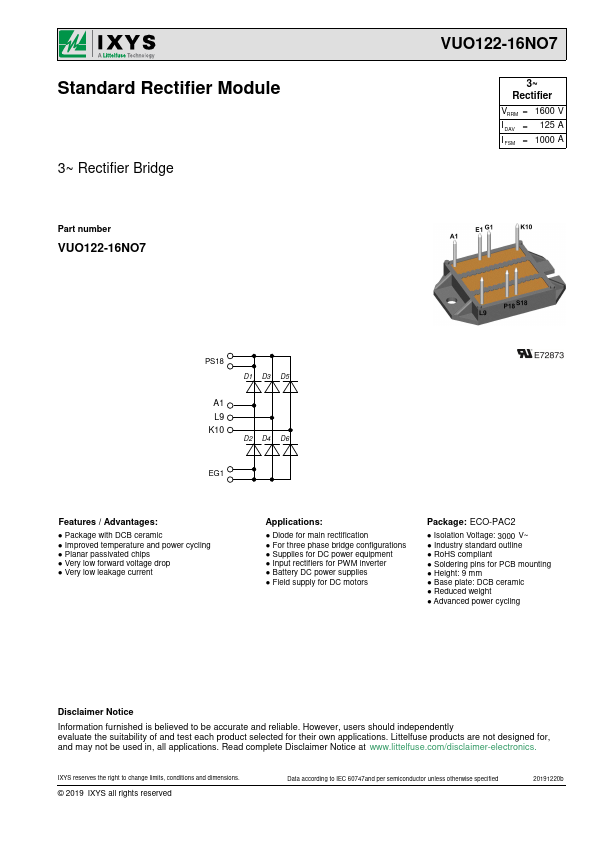

VUO122-16NO7 Datasheet Preview — Preview of VUO122-16NO7 PDF

Datasheet Specifications

Part number: VUO122-16NO7
Manufacturer: IXYS
File Size: 240.09 KB
Datasheet: VUO122-16NO7-IXYS.pdf
Description: Standard Rectifier Module

Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop

Applications

* Diode for main rectification
* For three phase bridge configurations
* Supplies for DC power equipment
* Input rectifiers for PWM inverter
* Battery DC power supplies
* Field supply for DC motors Package: ECO-PAC2
* Isolation Voltage: 3000 V~
* Industry standard o

VUO122-16NO7 Distributors
