VUO120-12NO1 Three Phase Rectifier Bridge

IXYS Corporation

Description

Three Phase Rectifier Bridge VUO 120 VUO 155 IdAVM = 121 / 157 A VRRM = 1200-1600 V VRRM Type VV VRRM Type 1200 VUO 120-12 NO1 1600 VUO 120-16 NO1.

📥 Download Datasheet

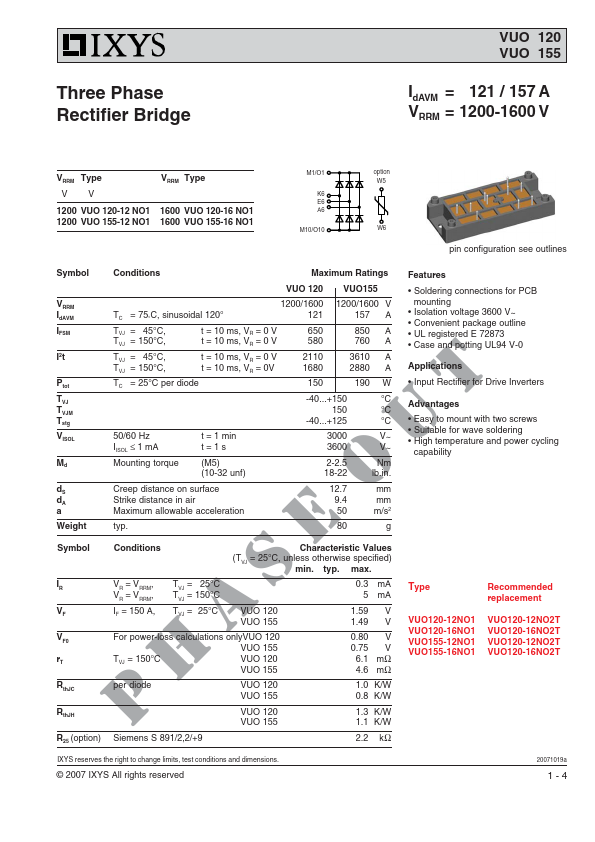

VUO120-12NO1 Datasheet Preview — Preview of VUO120-12NO1 PDF

Datasheet Specifications

Part number: VUO120-12NO1
Manufacturer: IXYS Corporation
File Size: 108.45 KB
Datasheet: VUO120-12NO1_IXYSCorporation.pdf
Description: Three Phase Rectifier Bridge

Features

* VUO 120 VUO155
* Soldering connections for PCB 1200/1600 1200/1600 V mounting TC = 75°C, sinusoidal 120° 121 157 A
* Isolation voltage 3600 V~
* Convenient package outline TVJ = 45°C, t = 10 ms, VR = 0 V 650 850 A
* UL registered E 72873 TVJ = 150°C, t =

Applications

* Input Rectifier for Drive Inverters Advantages
* Easy to mount with two screws
* Suitable for wave soldering
* High temperature and power cycling capability Strike distance in air Maximum allowable acceleration typ. 9.4 mm 50 m/s2 80 g e Conditions s VR = VR
