VUB145-16NOXT Standard Rectifier Module

VUB145-16NOXT Description

Standard Rectifier Module 3~ Rectifier Bridge + Brake Unit + NTC Part number VUB145-16NOXT VUB145-16NOXT 3~ Rectifier Brake Chopper VRRM = I DAV =.

VUB145-16NOXT Features

* / Advantages:
* Package with DCB ceramic
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop
* Very low leakage current
* NTC
* X2PT - 2nd generation Xtreme light Punch Through
* Rugged X2PT design results in: - short cir

VUB145-16NOXT Applications

* 3~ Rectifier with brake unit for drive inverters Package: E2-Pack
* Isolation Voltage: 3600 V~
* Industry standard outline
* RoHS compliant
* Soldering pins for PCB mounting
* Height: 17 mm
* Base plate: Copper internally DCB isolated
* Advanced power cycling

📥 Download Datasheet

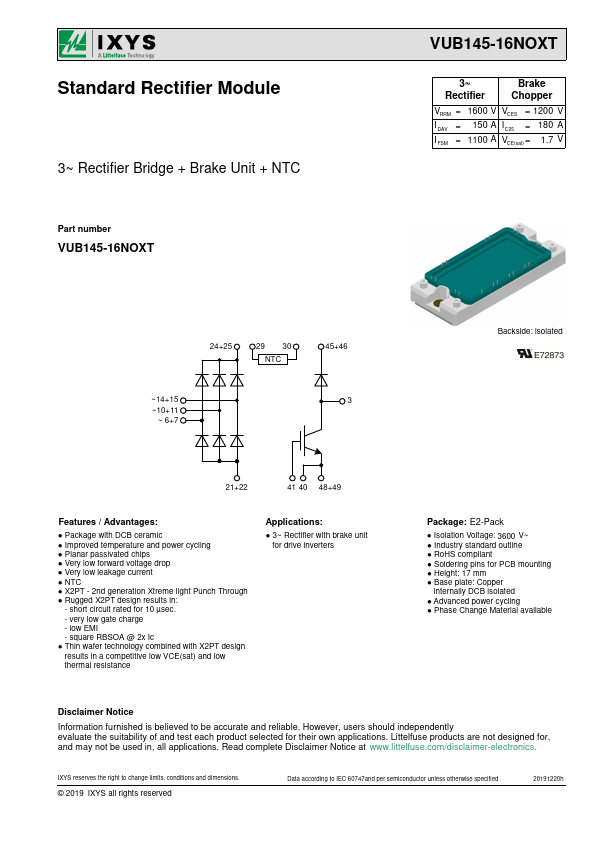

Preview of VUB145-16NOXT PDF

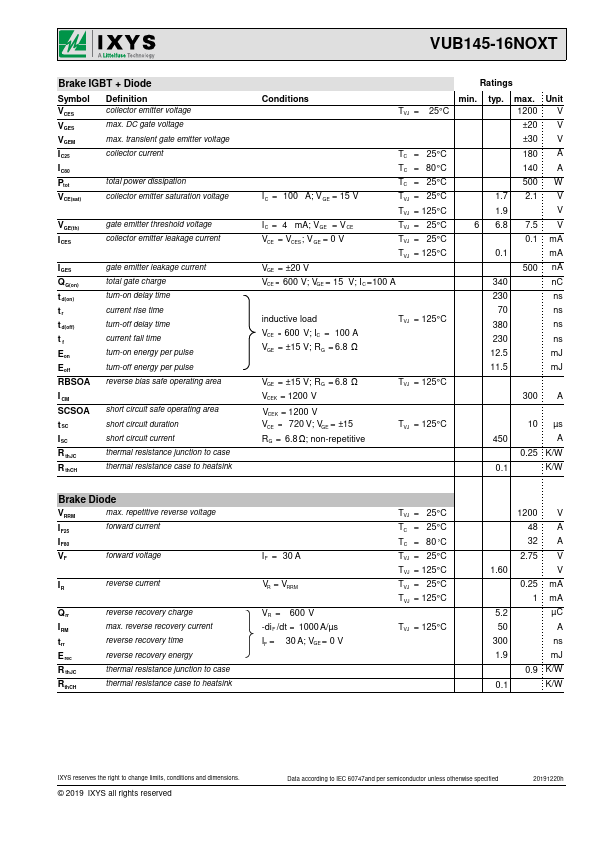

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VUB145-16NOXT
Manufacturer
IXYS
File Size
443.27 KB
Datasheet
VUB145-16NOXT-IXYS.pdf
Description
Standard Rectifier Module
