VUB120-16NOX Standard Rectifier

VUB120-16NOX Description

Standard Rectifier Module 3~ Rectifier Bridge + Brake Unit Part number VUB120-16NOX VUB120-16NOX 3~ Rectifier Brake Chopper VRRM = I DAV = I FSM =.

VUB120-16NOX Features

* / Advantages:
* Package with DCB ceramic base plate
* Improved temperature and power cycling
* Planar passivated chips
* Very low forward voltage drop
* Very low leakage current
* X2PT - 2nd generation Xtreme light Punch Through
* Rugged X2PT design results in: - short ci

VUB120-16NOX Applications

* 3~ Rectifier with brake unit for drive inverters Package: V2-Pack
* Isolation Voltage: 3600 V~
* Industry standard outline
* RoHS compliant
* Soldering pins for PCB mounting
* Height: 17 mm
* Base plate: DCB ceramic
* Reduced weight
* Advanced power cycling D

📥 Download Datasheet

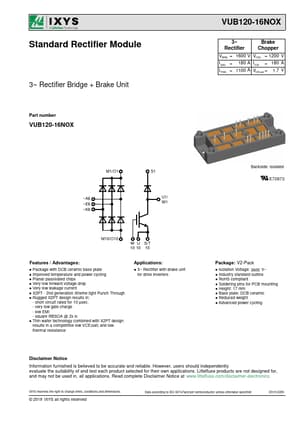

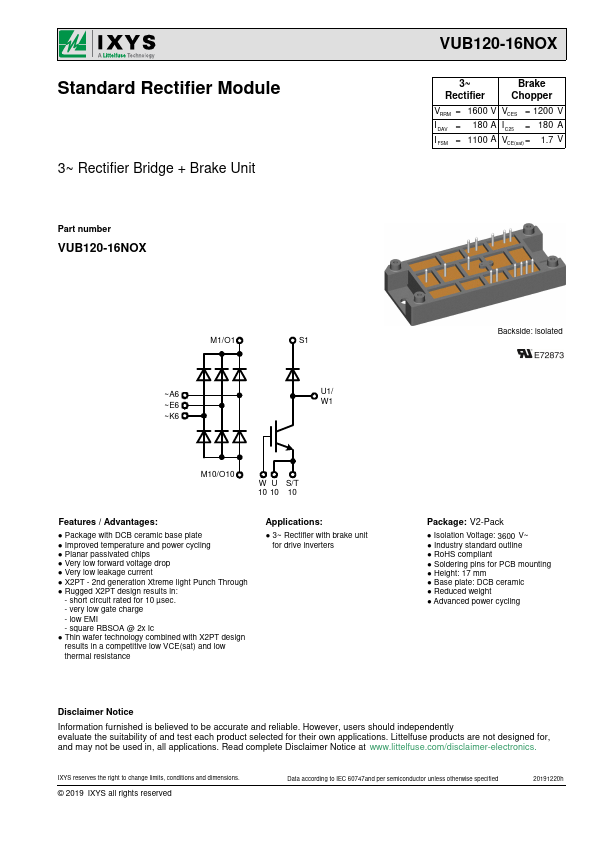

Preview of VUB120-16NOX PDF

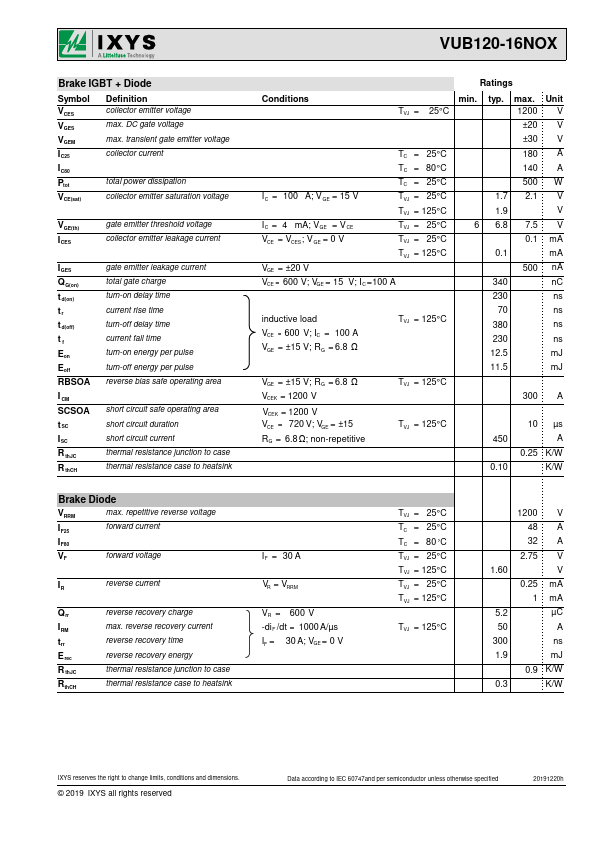

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VUB120-16NOX
Manufacturer
IXYS
File Size
258.24 KB
Datasheet
VUB120-16NOX-IXYS.pdf
Description
Standard Rectifier
