VCC105 - Thyristor Modules

VCC105 Description

Thyristor Modules ECO-PAC 2 VCC 105 I = 2x180A TRMS ITAVM = 2x105A VRRM = 800-1800 V Preliminary Data V RSM VDSM V 900 1300 1500 1700 1900 V RRM V.

VCC105 Features

* Isolation voltage 3600 V~
* Planar glass passivated chips
* Low forward voltage drop

VCC105 Applications

* DC motor control
* Light and temperature control
* Softstart AC motor controller
* Solid state switches Advantages
* Easy to mount with two screws
* Space and weight savings
* Improved temperature and power cycling
* High power densit

📥 Download Datasheet

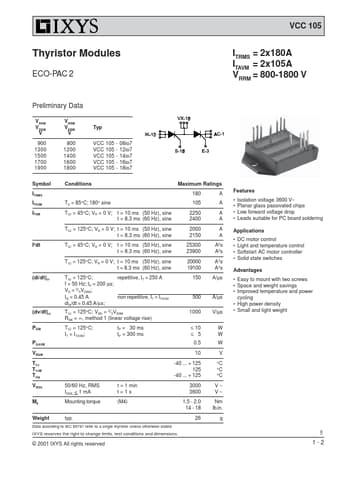

Preview of VCC105 PDF
datasheet Preview Page 2

Datasheet Details

Part number
VCC105
Manufacturer
IXYS
File Size
59.88 KB
Datasheet
VCC105-IXYS.pdf
Description
Thyristor Modules
