VCC1-B3A-125M00 - VCC1 Series CMOS Oscillator

Description

Vectron’s VCC1 Crystal Oscillator (XO) is quartz stabilized square wave generator with a CMOS output, operating off a 1.8, 2.5, 3.3, or 5.0 volt supply.

Features

  • CMOS output.
  • Output frequencies to 190 MHz.
  • Low jitter, Fundamental or 3rd OT Crystal.
  • Tri-state output for board test and debug.
  • -10/70 or.
  • 40/85 °C operating temperature.
  • Gold over nickel contact pads.
  • Hermetically sealed ceramic SMD package The VCC1 Crystal Oscillator.
  • Product is compliant to RoHS directive and fully compatible with lead free assembly.

📥 Download Datasheet

Datasheet Details

Part number VCC1-B3A-125M00
Manufacturer Vectron International
File Size 204.76 KB
Description VCC1 Series CMOS Oscillator
Datasheet download datasheet VCC1-B3A-125M00 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
VCC1-103 (VCC1-103 / -105) Crystal Oscillators VECTRON
VCC1-105 (VCC1-103 / -105) Crystal Oscillators VECTRON
VCC1 CMOS Oscillator VECTRON
VCC105 Thyristor Modules IXYS
VCC105-08io7 Thyristor Modules IXYS

Other Datasheets by Vectron International

Part Number Description
VCC1-B3A-20M00 VCC1 Series CMOS Oscillator
VCC4 CMOS Oscillator
VCC6-107 +/-20 ppm LVPECL Oscillator
VCC6-D 106M250/212M500 Dual Rate PECL and LVDS Oscillator
VCC6-L 3.3 volt LVDS Oscillator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

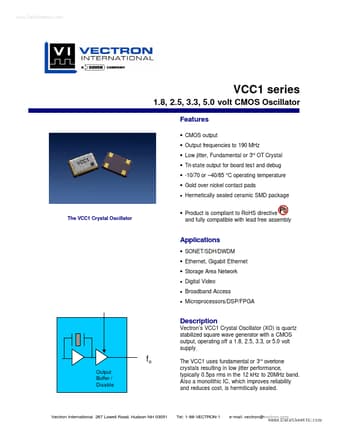

www.DataSheet4U.com VCC1 series 1.8, 2.5, 3.3, 5.0 volt CMOS Oscillator Features • CMOS output • Output frequencies to 190 MHz • Low jitter, Fundamental or 3rd OT Crystal • Tri-state output for board test and debug • -10/70 or –40/85 °C operating temperature • Gold over nickel contact pads • Hermetically sealed ceramic SMD package The VCC1 Crystal Oscillator • Product is compliant to RoHS directive and fully compatible with lead free assembly Applications • SONET/SDH/DWDM • Ethernet, Gigabit Ethernet • Storage Area Network • Digital Video • Broadband Access • Microprocessors/DSP/FPGA Description Vectron’s VCC1 Crystal Oscillator (XO) is quartz stabilized square wave generator with a CMOS output, operating off a 1.8, 2.5, 3.3, or 5.0 volt supply.
