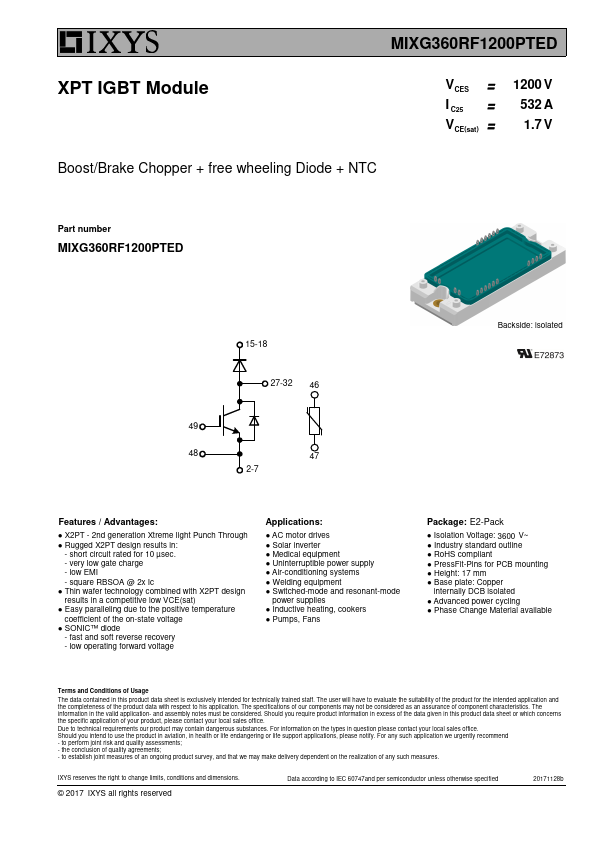

MIXG360RF1200PTED - XPT IGBT Module

Product Overview

IXYS

Part number	MIXG360RF1200PTED
Manufacturer	IXYS
File Size	442.69 KB
Description	XPT IGBT Module
Datasheet	MIXG360RF1200PTED Datasheet

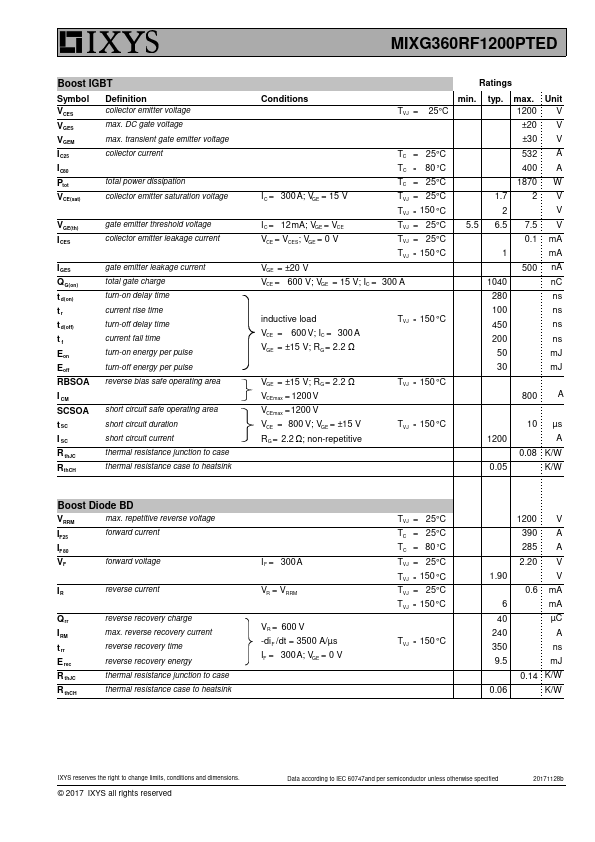

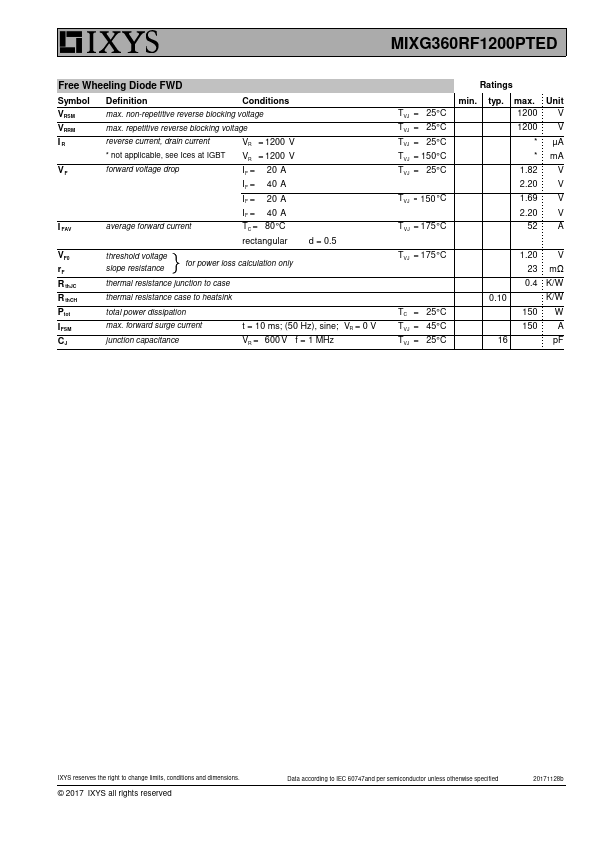

Additional preview pages of the MIXG360RF1200PTED datasheet.

/ Advantages:.
X2PT - 2nd generation Xtreme light Punch Through.
Rugged X2PT design results in: - short circuit rated for 10 µsec. - very low gate charge - low EMI - square RBSOA @ 2x Ic.
Thin wafer technology combined with X2PT design results in a competitive low VCE(sat).
Easy paralleling due to the positive temperature coefficient of the on-state voltage.
SONIC™ diode - fast and soft reverse recovery - low operating forward voltage.
