MIXG240W1200PZTEH - X2PT IGBT

Product Overview

IXYS

Part number	MIXG240W1200PZTEH
Manufacturer	IXYS
File Size	441.68 KB
Description	X2PT IGBT
Datasheet	MIXG240W1200PZTEH Datasheet
Additional preview pages of the MIXG240W1200PZTEH datasheet.

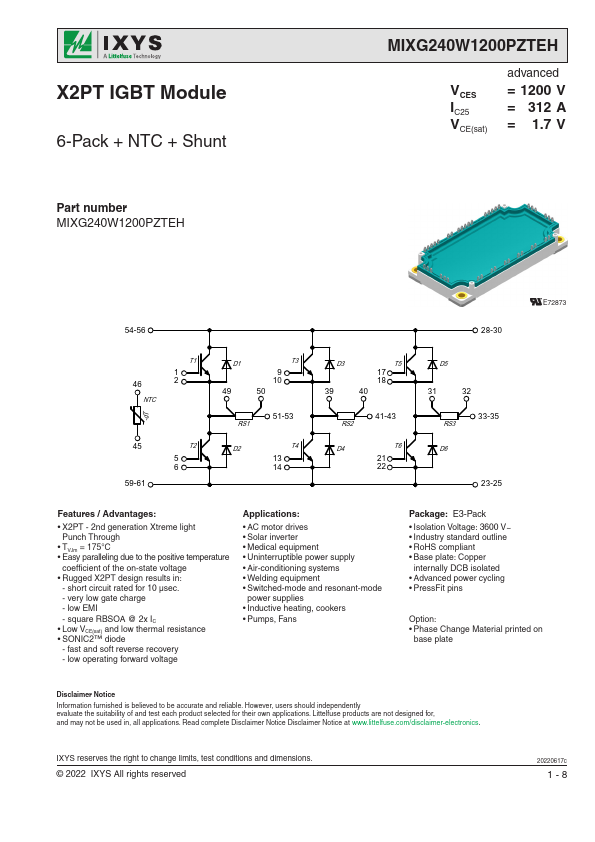

/ Advantages:.
X2PT - 2nd generation Xtreme light Punch Through.
TVJm = 175°C.
Easy paralleling due to the positive temperature coefficient of the on-state voltage.
Rugged X2PT design results in: - short circuit rated for 10 μsec. - very low gate charge - low EMI - square RBSOA @ 2x IC.
Low VCE(sat) and low thermal resistance.
SONIC2™ diode - fast and soft reverse recovery - low operating forward voltage.
