Datasheet Details
Part number:
IXYP24N100A4, IXYA24N100A4HV
Manufacturer:
IXYS
File Size:
349.56 KB
Description:
Ultra-low vsat pt igbt.
Note:
This datasheet PDF includes multiple part numbers: IXYP24N100A4, IXYA24N100A4HV.
Please refer to the document for exact specifications by model.
IXYP24N100A4, IXYA24N100A4HV, Ultra-Low Vsat PT IGBT

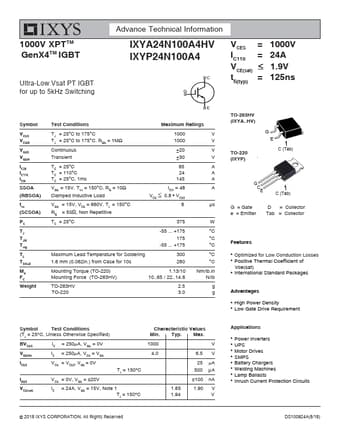

1000V XPTTM GenX4TM IGBT Ultra-Low Vsat PT IGBT for up to 5kHz Switching Advance Technical Information IXYA24N100A4HV IXYP24N100A4 VCES = 1000V IC110 = 24A V CE(sat) 1.9V tfi(typ) = 125ns Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions Maximum Ratings TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient 1000 V 1000 V ±20 V ±30 V TC = 25°C TC = 110°C TC = 25°C, 1ms 85 A 24 A 145
IXYP24N100A4 Features
* Optimized for Low Conduction Losses
* Positive Thermal Coefficient of Vce(sat)
* International Standard Packages Advantages
* High Power Density
* Low Gate Drive Requirement Applications
* Power Inverters
* UPS
* Motor Drives
* SMPS
* Battery Chargers
