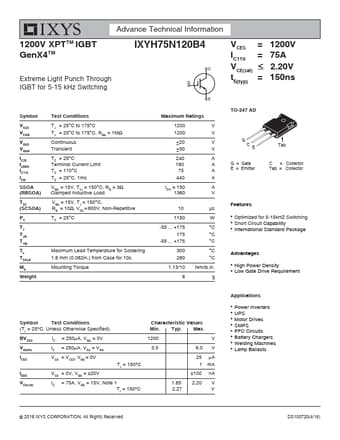

Advance Technical Information 1200V XPTTM IGBT GenX4TM Extreme Light Punch Through IGBT for 5-15 kHz Switching IXYH75N120B4 VCES = 1200V IC110 = 75A VCE(sat)  2.20V tfi(typ) = 150ns Symbol VCES VCGR VGES VGEM IC25 ILRMS IC110 ICM SSOA (RBSOA) T(SSCCSOA) PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient TC = 25°C Terminal Current Limit TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 150°C, RG = 3 Clamped Inductive Load

IXYH75N120B4 Features

* Optimized for 5-15kHZ Switching

* Short Circuit Capability

* International Standard Package Advantages

* High Power Density

* Low Gate Drive Requirement Applications

* Power Inverters

* UPS

* Motor Drives

* SMPS

* PFC Circuits

* Battery Chargers

* We
