IXTQ22N60P - PolarHV Power MOSFET

IXYS

📥 Download Datasheet

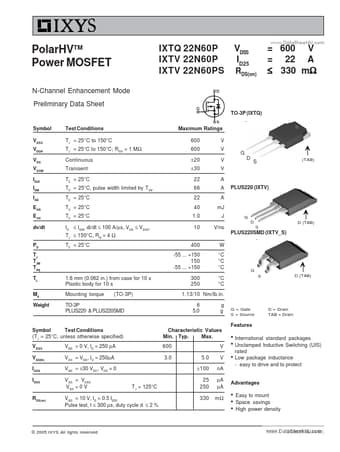

IXTQ22N60P Datasheet Preview — Preview of IXTQ22N60P PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IXTQ22N60P
Manufacturer	IXYS
File Size	198.95 KB
Description	PolarHV Power MOSFET
Datasheet	IXTQ22N60P_IXYS.pdf

IXTQ22N60P Product details

Features

Symbol Test Conditions (TJ = 25°C, unless otherwise specified) VDSS VGS(th) IGSS IDSS RDS(on) VGS = 0 V, ID = 250 µA VDS = VGS, ID = 250µA VGS = ±30 VDC, VDS = 0 VDS = VDSS VGS = 0 V TJ = 125°C Characteristic Values Min. Typ. Max. 600 3.0 5.0 ±100 25 250 330 V V nA µA µA mΩ z z z International standard packages Unclamped Inductive Switching (UIS) rated Low package inductance - easy to drive and to protect Advantages z z z VGS = 10 V, ID = 0.5 ID25 Pulse test, t ≤ 300 µs, duty cycle d ≤ 2 %.
