IXTH300N04T2, Power MOSFET

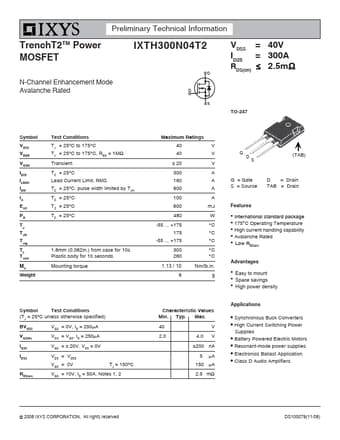

Preliminary Technical Information TrenchT2TM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTH300N04T2 VDSS = ID25 = RDS(on) ≤ 40V 300A 2.5mΩ TO-247 Symbol VDSS VDGR VGSM ID25 ILRMS IDM IA EAS PD TJ TJM Tstg TL Tsold M d Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGS = 1MΩ Transient TC = 25°C Lead Current Limit, RMS TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C 1.6mm (0.062in.) from case for 10s Plastic body for 10 seconds Mounting torqu

IXTH300N04T2 Features

* z International standard package z 175°C Operating Temperature z High current handling capability z Avalanche Rated z Low RDS(on) Advantages z Easy to mount z Space savings z High power density Applications

* Synchronous Buck Converters

* High Current Switching Power Supplies
