IXTH12N65X2 - Power MOSFET

Download the IXTH12N65X2 datasheet PDF. This datasheet also covers the IXTA12N65X2 variant, as both devices belong to the same power mosfet family and are provided as variant models within a single manufacturer datasheet.

Features

  • International Standard Packages.
  • Low RDS(ON) and QG.
  • Avalanche Rated.
  • Low Package Inductance Symbol Test Conditions (TJ = 25C, Unless Otherwise Specified) BVDSS VGS = 0V, ID = 250μA VGS(th) VDS = VGS, ID = 250μA IGSS VGS = 30V, VDS = 0V IDSS VDS = VDSS, VGS = 0V TJ = 125C RDS(on) VGS = 10V, ID = 0.5.
  • ID25, Note 1 Characteristic Values Min. Typ. Max. 650 V 2.5 4.5 V 100 nA 5 A 50 A 300 m Advantages.
  • High Power Den.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IXTA12N65X2-IXYS.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IXTH12N65X2 N-Channel MOSFET INCHANGE
IXTH12N100 MOSFET IXYS Corporation
IXTH12N70X2 N-Channel MOSFET INCHANGE
IXTH12N90 N-Channel MOSFET INCHANGE
IXTH102N15T N-Channel MOSFET INCHANGE

Other Datasheets by IXYS (Littelfuse)

Part Number Description
IXTH12N100L Power MOSFET
IXTH12N120 Power MOSFET
IXTH12N140 Power MOSFET
IXTH12N150 High Voltage Power MOSFET
IXTH12N70X2 Power MOSFET

Full PDF Text Transcription

Click to expand full text

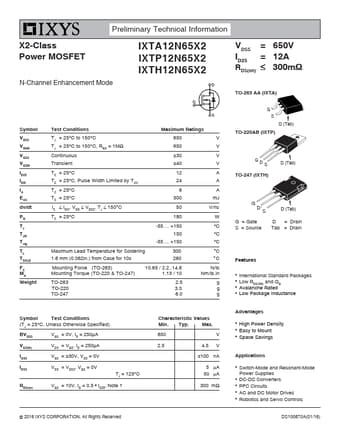

Preliminary Technical Information X2-Class Power MOSFET N-Channel Enhancement Mode IXTA12N65X2 IXTP12N65X2 IXTH12N65X2 VDSS = ID25 = RDS(on) 650V 12A 300m TO-263 AA (IXTA) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD FMCd Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient Maximum Ratings 650 650 30 40 V V V V TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C IS  IDM, VDD  VDSS, TJ  150°C TC = 25C 12 24 6 300 50 180 -55 ... +150 150 -55 ... +150 A A A mJ V/ns W C C C Maximum Lead Temperature for Soldering 1.6 mm (0.062in.) from Case for 10s 300 260 °C °C Mounting Force (TO-263) Mounting Torque (TO-220 & TO-247) 10.65 / 2.2..14.6 1.13 / 10 N/lb Nm/lb.
