IXGK120N60C2, IGBT

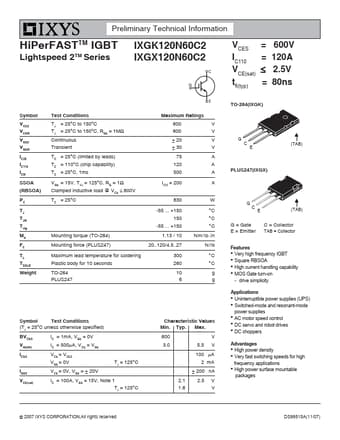

Preliminary Technical Information HiPerFASTTM IGBT IXGK120N60C2 Lightspeed 2TM Series IXGX120N60C2 VCES = 600V IC110 = 120A VCE(sat) ≤ 2.5V tfi(typ) = 80ns Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg Md FC TL TSOLD Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1MΩ Continuous Transient TC = 25°C (limited by leads) TC = 110°C (chip capability) TC = 25°C, 1ms VGE = 15V, TVJ = 125°C, RG = 1Ω Clamped inductive load @ VCE ≤ 600V TC = 25°C Mounting

IXGK120N60C2 Features

* z Very high frequency IGBT z Square RBSOA z High current handling capability z MOS Gate turn-on - drive simplicity Applications z Uninterruptible power supplies (UPS) z Switched-mode and resonant-mode power supplies z AC motor speed control z DC servo and robot drives z DC choppers Advantages z High
