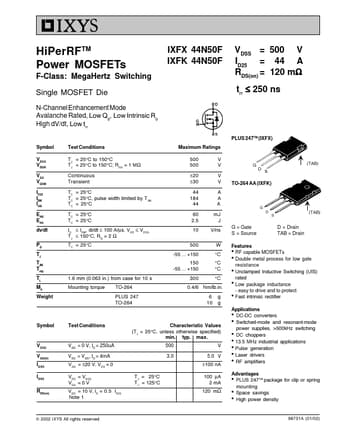

HiPerRFTM Power MOSFETs
F-Class: MegaHertz Switching
Single MOSFET Die
IXFX 44N50F IXFK 44N50F
VDSS = 500 V ID25 = 44 A RDS(on) = 120 mΩ
trr ≤ 250 ns
N-Channel Enhancement Mode
Avalanche Rated, Low Qg, Low Intrinsic Rg High dV/dt, Low trr
Symbol
Test Conditions
Maximum Ratings
PLUS 247TM (IXFX)
VDSS VDGR VGS VGSM ID25 IDM IAR EAR EAS dv/dt
P D
TJ T
JM
Tstg T
L
Md Weight
Symbol
V DSS
VGS(th) IGSS
IDSS
RDS(on)
TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/µs, VDD ≤ VDSS TJ ≤ 150°C, RG = 2 Ω TC = 25°C
1.6 mm (0.063 in.) from case for 10 s Mounting torque TO-264
PLUS 247 TO-264
500
V
500
V
±20
V
±30
V
44
A
184
A
44
A
60
mJ
2.
