IXA12IF1200PB - XPT IGBT

Features

  • / Advantages:.
  • Easy paralleling due to the positive temperature coefficient of the on-state voltage.
  • Rugged XPT design (Xtreme light Punch Through) results in: - short circuit rated for 10 µsec. - very low gate charge - low EMI - square RBSOA @ 3x Ic.
  • Thin wafer technology combined with the XPT design results in a competitive low VCE(sat).
  • SONIC™ diode - fast and soft reverse recovery - low operating forward voltage.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IXA611 Half-Bridge Driver IXYS Corporation

Other Datasheets by IXYS (Littelfuse)

Part Number Description
IXA12IF1200PC XPT IGBT
IXA12IF1200HB XPT IGBT
IXA12IF1200TC XPT IGBT
IXA17IF1200HJ XPT IGBT
IXA20I1200PB XPT IGBT

Full PDF Text Transcription

Click to expand full text

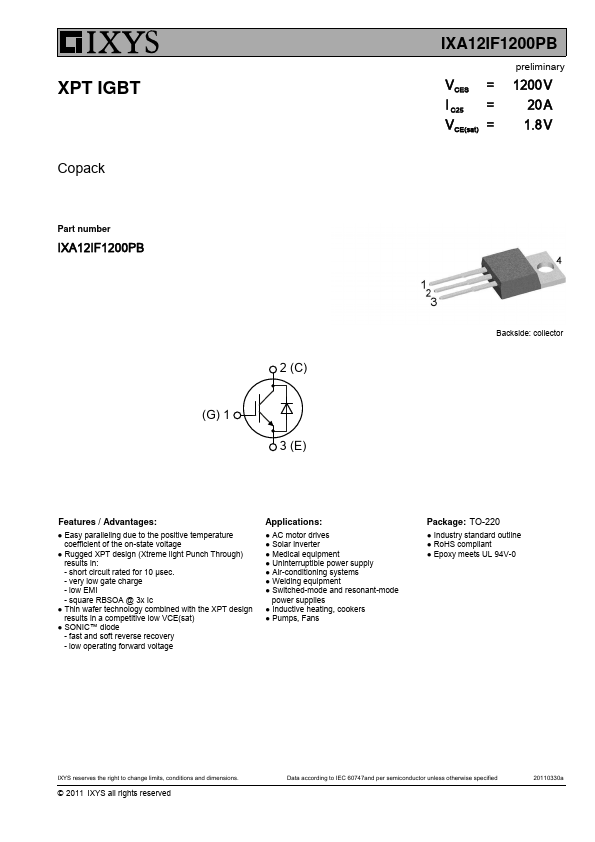

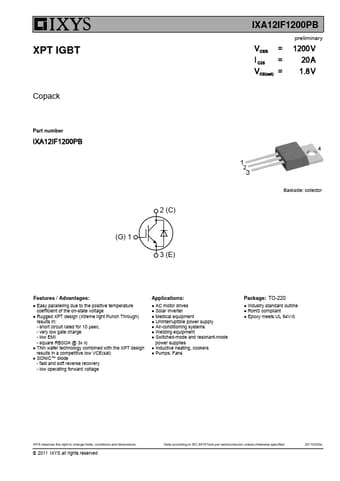

XPT IGBT Copack Part number IXA12IF1200PB IXA12IF1200PB VCES = I C25 = V = CE(sat) preliminary 1200 V 20 A 1.8 V (G) 1 2 (C) 3 (E) Backside: collector Features / Advantages: ● Easy paralleling due to the positive temperature coefficient of the on-state voltage ● Rugged XPT design (Xtreme light Punch Through) results in: - short circuit rated for 10 µsec.
