G4000EC450 - Anode Shorted Gate Turn-Off Thyristor

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
G400P06 P-Channel Enhancement Mode Power MOSFET GOFORD
G400P06T P-Channel Enhancement Mode Power MOSFET GOFORD
G400SD SCHOTTKY BARRIER DIODE GTM
G40 Voltage-Controlled Attenuator Module MACOM
G4010E DC AXIAL FANS Mechatronics

Other Datasheets by IXYS (Littelfuse)

Part Number Description
G4000EF250 Anode Shorted Gate Turn-Off Thyristor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

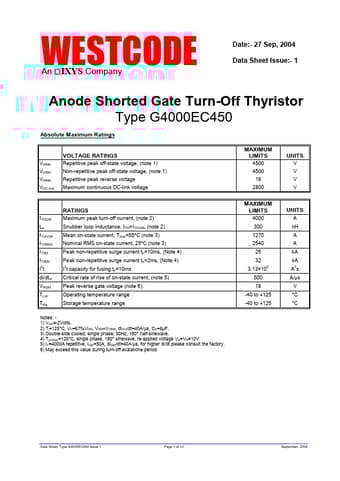

WESTCODE An IXYS Company Date:- 27 Sep, 2004 Data Sheet Issue:- 1 Anode Shorted Gate Turn-Off Thyristor Type G4000EC450 Absolute Maximum Ratings VDRM VDSM VRRM VDC-link VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage Maximum continuous DC-link voltage MAXIMUM LIMITS 4500 4500 18 2800 UNITS V V V V ITGQM Ls IT(AV)M IT(RMS) ITSM ITSM2 I2t di/dtcr VRGM Tj op Tstg RATINGS Maximum peak turn-off current, (note 2) Snubber loop inductance, ITM=ITGQM, (note 2) Mean on-state current, Tsink=55°C (note 3) Nominal RMS on-state current, 25°C (note 3) Peak non-repetitive surge current tp=10ms, (Note 4) Peak non-repetitive surge current tp=2ms, (Note 4) I2t capacity for fusing tp=10ms Critical rate of rise
