DSEK60-02A, Fast Recovery Epitaxial Diode

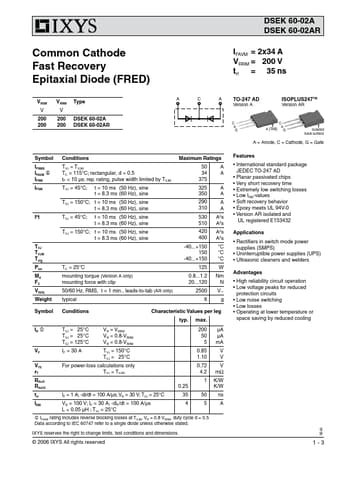

DSEK 60-02A DSEK 60-02AR Common Cathode Fast Recovery Epitaxial Diode (FRED) IFAVM = 2x34 A VRRM = 200 V trr = 35 ns VRSM V 200 200 VRRM V 200 200 Type DSEK 60-02A DSEK 60-02AR A C A TO-247 AD Version A ISOPLUS247TM Version AR C A G A h (TAB) C A G h Isolated back surface A = Anode, C = Cathode, G = Gate Symbol IFRMS IFAVM j IFRM IFSM I2t TVJ TVJM Tstg Ptot Md FC VISOL Weight Conditions TVJ = TVJM TC = 115°C; rectangular, d = 0.5 tP < 10 µs; rep.

rating, pulse width limited b

DSEK60-02A Features

* International standard package JEDEC TO-247 AD

* Planar passivated chips

* Very short recovery time

* Extremely low switching losses

* Low IRM-values

* Soft recovery behavior

* Epoxy meets UL 94V-0

* Version AR isolated and UL reg
