DSA90C200HB - Schottky Diode

The DSA90C200HB by IXYS is a Schottky Diode. Below is the official datasheet preview.

📥 Download Datasheet

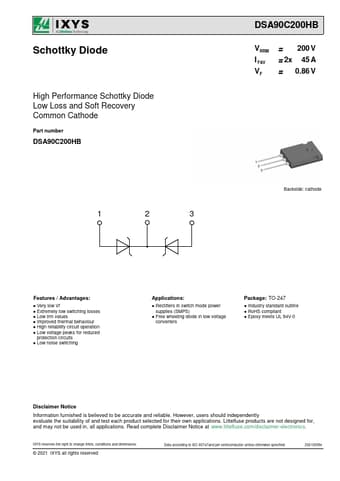

Official preview page of the DSA90C200HB Schottky Diode datasheet (IXYS).

Datasheet Details

Part number DSA90C200HB
Manufacturer IXYS
File Size 373.69 KB
Description Schottky Diode
Datasheet download datasheet DSA90C200HB-IXYS.pdf
Additional preview pages of the DSA90C200HB datasheet.

DSA90C200HB Product details

Description

D = Diode S = Schottky Diode A = low VF 90 = Current Rating [A] C = Common Cathode 200 = Reverse Voltage [V] HB = TO-247AD (3) Ordering Standard Ordering Number DSA90C200HB Marking on Product DSA90C200HB Delivery Mode Tube Quantity Code No.30 502854 Equivalent Circuits for Simulation I V0 R0 Schottky V 0 max R0 max threshold voltage slope resistance 0.52 3.9 on die level T VJ = 175°C V mΩ IXYS reserves the right to change limits, conditions and dimensions.© 2021 IX

Features
