DPF60IM400HB - High Performance Fast Recovery Diode

IXYS

The DPF60IM400HB by IXYS is a High Performance Fast Recovery Diode. Below is the official datasheet preview.

📥 Download Datasheet

DPF60IM400HB High Performance Fast Recovery Diode by IXYS - Datasheet Preview — Official preview page of the **DPF60IM400HB** High Performance Fast Recovery Diode datasheet (IXYS).

Datasheet Details

Part number	DPF60IM400HB
Manufacturer	IXYS
File Size	360.00 KB
Description	High Performance Fast Recovery Diode
Datasheet	DPF60IM400HB-IXYS.pdf

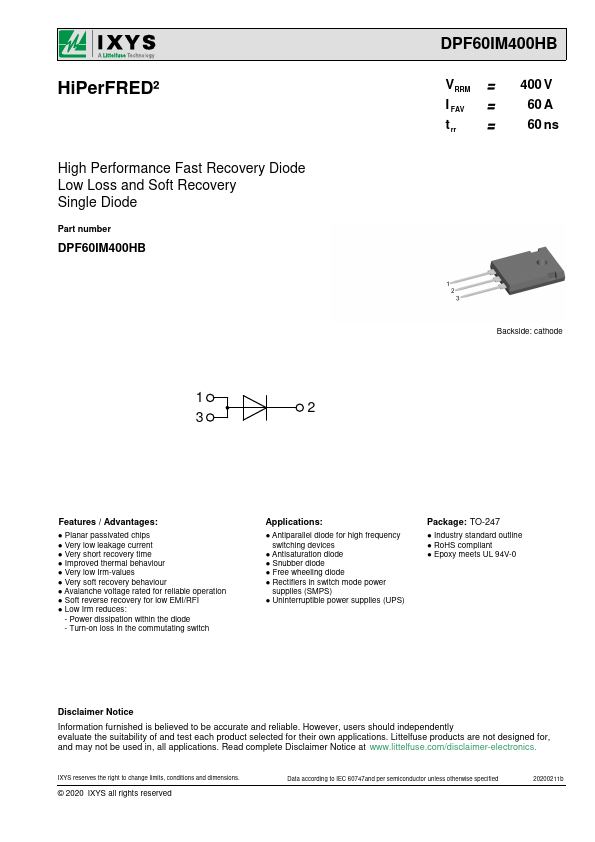

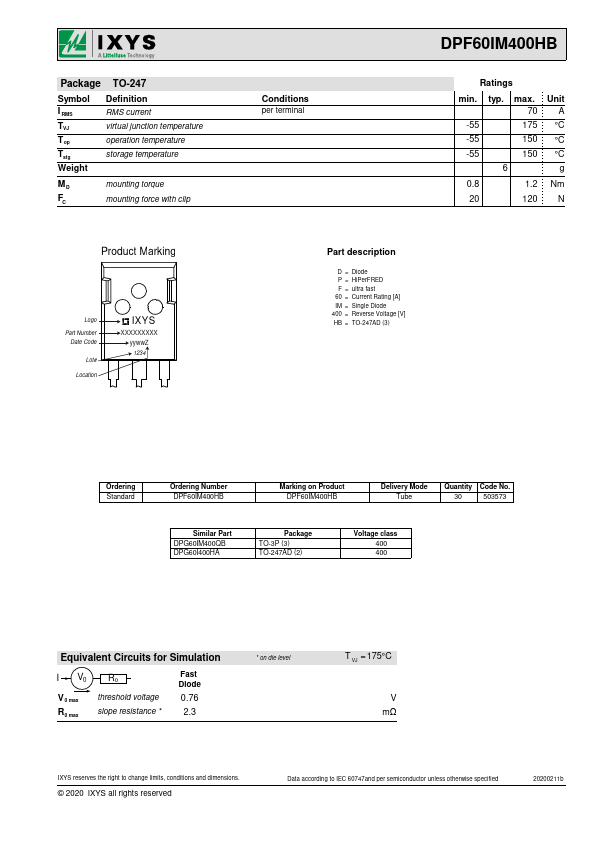

Additional preview pages of the DPF60IM400HB datasheet.

DPF60IM400HB Product details

Description

D = Diode P = HiPerFRED F = ultra fast 60 = Current Rating [A] IM = Single Diode 400 = Reverse Voltage [V] HB = TO-247AD (3) Ordering Standard Ordering Number DPF60IM400HB Marking on Product DPF60IM400HB Delivery Mode Tube Quantity Code No.30 503573 Similar Part DPG60IM400QB DPG60I400HA Package TO-3P (3) TO-247AD (2) Voltage class 400 400 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance Fast Diode 0.76 2.3 on die level T

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
