DPF240X400NA - High Performance Fast Recovery Diode

IXYS

The DPF240X400NA by IXYS is a High Performance Fast Recovery Diode. Below is the official datasheet preview.

📥 Download Datasheet

DPF240X400NA High Performance Fast Recovery Diode by IXYS - Datasheet Preview — Official preview page of the **DPF240X400NA** High Performance Fast Recovery Diode datasheet (IXYS).

Datasheet Details

Part number	DPF240X400NA
Manufacturer	IXYS
File Size	513.19 KB
Description	High Performance Fast Recovery Diode
Datasheet	DPF240X400NA-IXYS.pdf

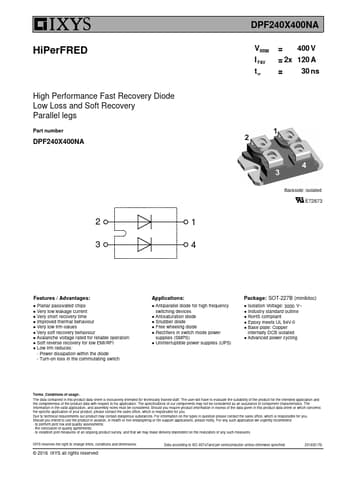

Additional preview pages of the DPF240X400NA datasheet.

DPF240X400NA Product details

Description

D = Diode P = HiPerFRED F = ultra fast 240 = Current Rating [A] X = Parallel legs 400 = Reverse Voltage [V] NA = SOT-227B (minibloc) Ordering Standard Ordering Number DPF240X400NA Marking on Product DPF240X400NA Delivery Mode Tube Quantity Code No.10 499554 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance Fast Diode 0.71 1.01 on die level T VJ = 150°C V mΩ IXYS reserves the right to change limits, conditions and dimensions.

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
