DPF30P600HR - High Performance Fast Recovery Diode

IXYS

The DPF30P600HR by IXYS is a High Performance Fast Recovery Diode. Below is the official datasheet preview.

📥 Download Datasheet

DPF30P600HR High Performance Fast Recovery Diode by IXYS - Datasheet Preview — Official preview page of the **DPF30P600HR** High Performance Fast Recovery Diode datasheet (IXYS).

Datasheet Details

Part number	DPF30P600HR
Manufacturer	IXYS
File Size	375.64 KB
Description	High Performance Fast Recovery Diode
Datasheet	DPF30P600HR-IXYS.pdf

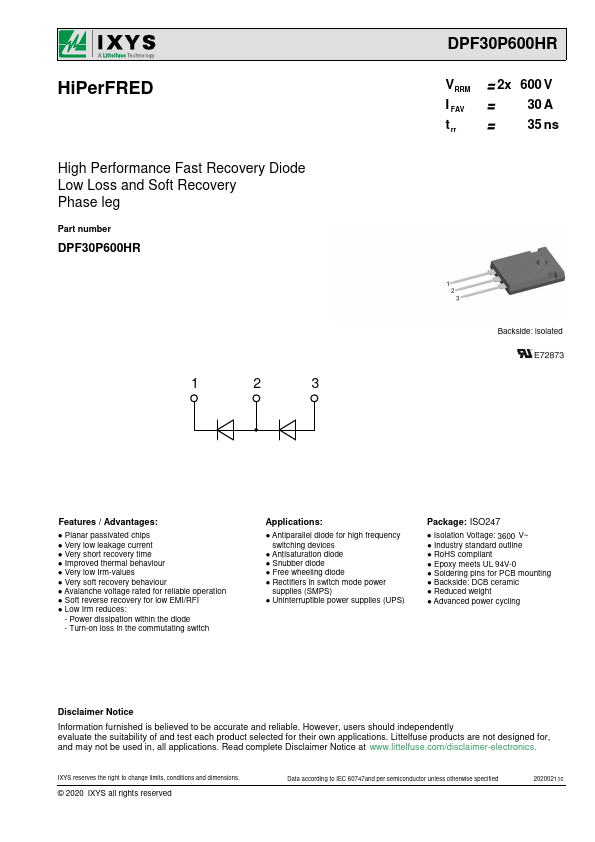

Additional preview pages of the DPF30P600HR datasheet.

DPF30P600HR Product details

Description

D = Diode P = HiPerFRED F = ultra fast 30 = Current Rating [A] P = Phase leg 600 = Reverse Voltage [V] HR = ISO247 (3) Ordering Standard Ordering Number DPF30P600HR Marking on Product DPF30P600HR Delivery Mode Tube Quantity Code No.30 517860 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance Fast Diode 1 6.2 on die level T VJ = 175°C V mΩ IXYS reserves the right to change limits, conditions and dimensions.© 2020 IXYS all rig

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
