DHG5I600PA - Sonic Fast Recovery Diode

Product Overview

IXYS

Datasheet Details

Part number	DHG5I600PA
Manufacturer	IXYS
File Size	108.30 KB
Description	Sonic Fast Recovery Diode
Datasheet	DHG5I600PA Datasheet

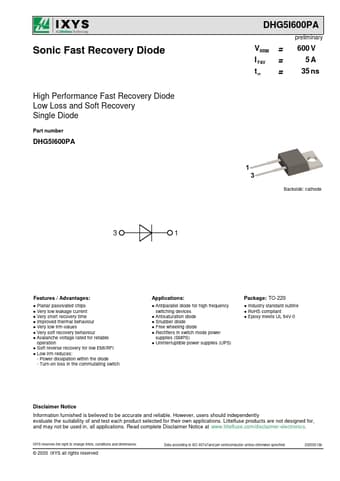

Additional preview pages of the DHG5I600PA datasheet.

Product details

Description

D = Diode H = Sonic Fast Recovery Diode G = extreme fast 5 = Current Rating [A] I = Single Diode 600 = Reverse Voltage [V] PA = TO-220AC (2) Ordering Standard Ordering Number DHG5I600PA Marking on Product DHG5I600PA Delivery Mode Tube Quantity Code No.50 504373 Similar Part DHG5I600PM Package TO-220ACFP (2) Voltage class 600 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance Fast Diode 1.14 182 on die level T VJ = 150°C V m

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
