DHG50X1200NA - Sonic Fast Recovery Diode

Product Overview

IXYS

Datasheet Details

Part number	DHG50X1200NA
Manufacturer	IXYS
File Size	508.34 KB
Description	Sonic Fast Recovery Diode
Datasheet	DHG50X1200NA Datasheet

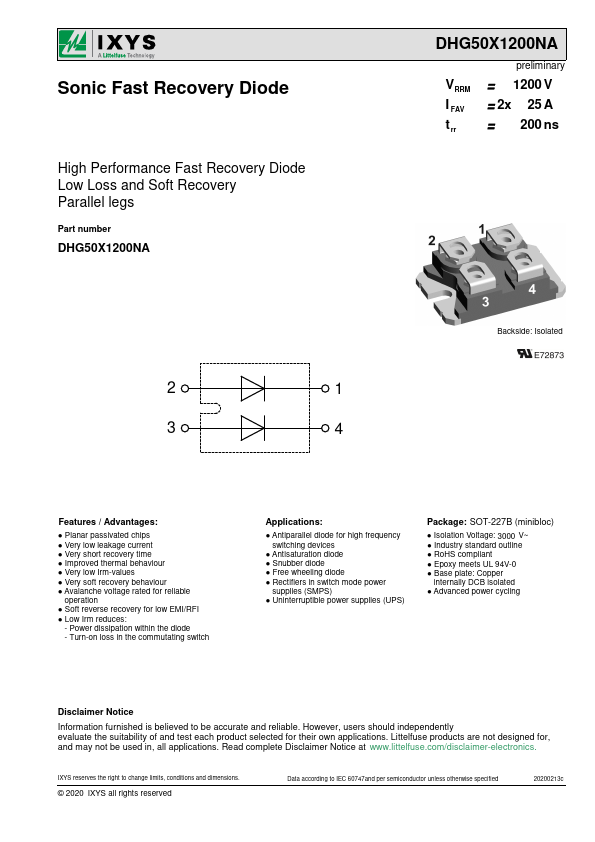

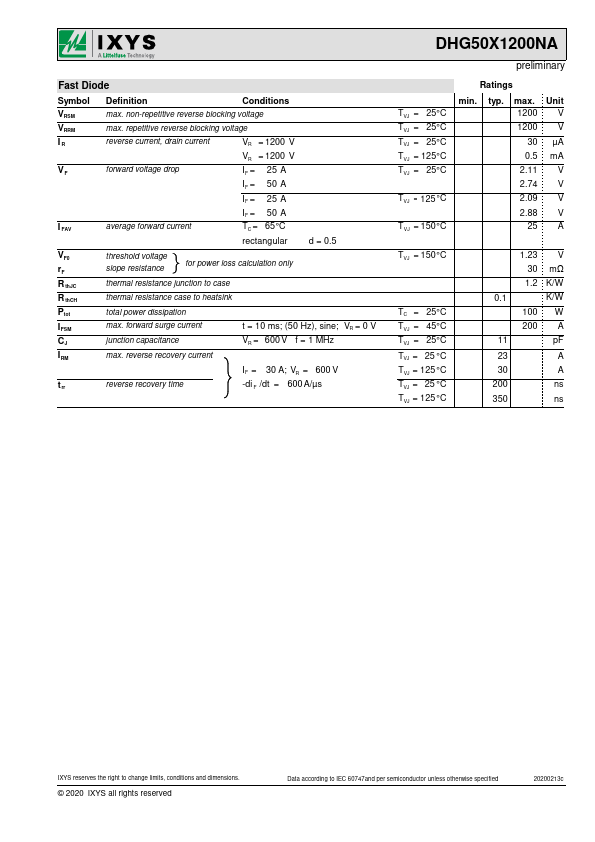

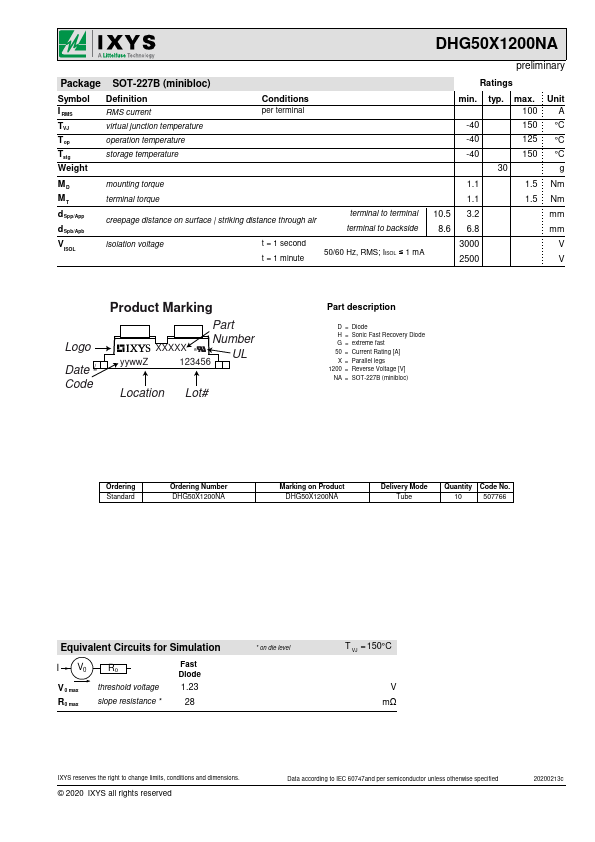

Additional preview pages of the DHG50X1200NA datasheet.

Product details

Description

D = Diode H = Sonic Fast Recovery Diode G = extreme fast 50 = Current Rating [A] X = Parallel legs 1200 = Reverse Voltage [V] NA = SOT-227B (minibloc) Ordering Standard Ordering Number DHG50X1200NA Marking on Product DHG50X1200NA Delivery Mode Tube Quantity Code No.10 507766 Equivalent Circuits for Simulation I V0 R0 V 0 max R0 max threshold voltage slope resistance Fast Diode 1.23 28 on die level T VJ = 150°C V mΩ IXYS reserves the right to change limits, conditions

Features

/ Advantages:.
Planar passivated chips.
Very low leakage current.
Very short recovery time.
Improved thermal behaviour.
Very low Irm-values.
Very soft recovery behaviour.
Avalanche voltage rated for reliable operation.
Soft reverse recovery for low EMI/RFI.
Low Irm reduces: - Power dissipation within the diode - Turn-on loss in the commutating switch.
