IXGH22N50BU1_IXYSCorporation.pdf
Datasheet Details
Part number:
IXGH22N50BU1S, IXGH22N50BU1
Manufacturer:
IXYS Corporation
File Size:
76.46 KB
Description:
Hiperfast igbt.
Note:
This datasheet PDF includes multiple part numbers: IXGH22N50BU1S, IXGH22N50BU1.
Please refer to the document for exact specifications by model.

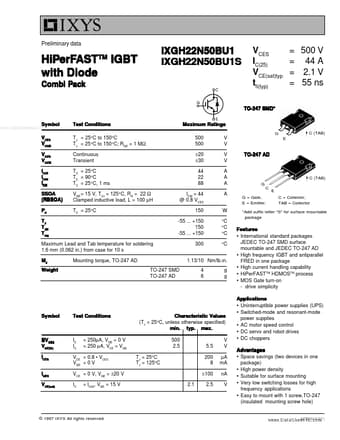

IXGH22N50BU1S, IXGH22N50BU1, HiPerFAST IGBT
Preliminary data HiP erF AST HiPerF erFAST with Diode Combi P ac k Pac ack TM IGBT IXGH22N50B U1 IXGH22N50BU1 IXGH22N50B U1S IXGH22N50BU1S VCES IC(25) VCE(sat)typ tfi(typ) TO-247 SMD = 500 V = 44 A = 2.1 V = 55 ns www.DataSheet4U.com Symbol Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MΩ Continuous Transient TC = 25°C TC = 90°C TC = 25°C, 1 ms VGE = 15 V, TVJ = 125°C, RG = 22 Ω Clamped inductive load, L = 100 µH TC = 25°C Maximum Ratings 500 500 ±20 ±30 44 22 88
IXGH22N50BU1S Features
* International standard packages JEDEC TO-247 SMD surface mountable and JEDEC TO-247 AD
* High frequency IGBT and antiparallel FRED in one package
* High current handling capability
* HiPerFASTTM HDMOSTM process
* MOS Gate turn-on - drive simplicity Applicati
